In this post we will draw ECG using Java script draw library functions, the output will looks like the above image.
To draw ECG we need to identify few things 1st :
1.ECG baseline used.
2.Sampling rate : no of readings per seconds.
1. We will have 1 html div component to draw the ECG inside:
<div id="Canvas" style="background-image: url(ecg_back.png); position: relative; height: 250px; width: 1000px;"></div>
This is the div background image, its 250x50, this will typically fit for 1 Second (so you need to draw samples in this box according to your sampling rate, in our example we have 500/seconds so we draw 500 per this 250 pixel , so we will increment the draw by 0.5 for each sample).
2. Import the graphics library: (in the header)
<script type="text/javascript" src="wz_jsgraphics.js"></script>
You can download this library from the URL:
https://code.google.com/p/eucaly61-java/downloads/detail?name=wz_jsgraphics.js&can=2&q=
3. Initialize the Java Script ECG variables: (in the header)
y=new Array(....,.....,.... ); //this contain the y values (readings) we will post the example values at the end of the article.
currentPart=0; //current page is 1st page in the ECG
baseline=201; //the is the ECG recording baseline
total=0; //total number of pages
temp=y.length; //calculate the total number of pages
while(temp>0){

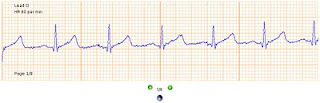

temp=temp-2000; //as shown in the 1st image , we will draw 4 seconds in each page (each second represented by 500 sample =2000 total sample)
total++;
}
//initiliazie the graphics object to draw in our Div (i.e. Canvas)
jg = new jsGraphics("Canvas");
//set this true if we need to allow the user to print it, it will impact performance a little.
jg.setPrintable(true);
4. Draw the initial ECG page by calling draw() method on html body onload:
<body onload="draw();">
5. Draw function code:
function draw(){
jg.setColor("black");
jg.drawString("Lead II",40,5); //this should be adjusted according to the lead number
jg.drawString("HR 80 per min",40,25); //this should be adjusted according to HR value
jg.drawString("Page "+(currentPart+1)+"/"+total,40,220); //this is the current page number
jg.setColor("blue");
var x=0;
jg.drawLine(x,y[0]+baseline,x,y[0]+baseline);
jg.setColor("blue");
var x=0;
jg.drawLine(x,y[0]+baseline,x,y[0]+baseline);
for(i=1;i<y.length;i++){
x=x+0.5;
jg.drawLine(x-1,0-y[i-1]+baseline,x,0-y[i]+baseline);
if(x==1000) { break;} //break once reach to end of the div of 4 seconds.
}
jg.paint();
return;
}
6. Next and Previous page buttons:
<img src="prev.gif" onclick="drawPrev();"/>
<img src="next.gif" onclick="drawNext();"/>
7. drawPrev() and drawNext() functions:
function drawNext(){
if(currentPart+1<total){
currentPart++;
}else{
return;
}
jg.clear(); //clear all drawings
jg.paint();
start=currentPart*2000; //this is the total samples per page (4 seconds)
var x=0;
jg.setColor("black");
jg.drawString("Lead II",40,5);
jg.drawString("HR 80 per min",40,25);
jg.drawString("Page "+(currentPart+1)+"/"+total,40,220);
jg.setColor("blue");
jg.drawLine(x,y[start]+baseline,x,y[start]+baseline);
for(i=start;i<y.length;i++){
x=x+0.5;
jg.drawLine(x-1,0-y[i-1]+baseline,x,0-y[i]+baseline);
if(x==1000) { break;}
}
jg.paint();
return;
}
function drawPrev(){
if(currentPart>0){
currentPart--;
}else{
return;
}
jg.clear(); //to clear all drawings
jg.paint();
start=currentPart*2000;
var x=0;
jg.setColor("black");
jg.drawString("Lead II",40,5);
jg.drawString("HR 80 per min",40,25);
jg.drawString("Page "+(currentPart+1)+"/"+total,40,220);
jg.setColor("blue");
jg.drawLine(x,y[start]+baseline,x,y[start]+baseline);
for(i=start;i<y.length;i++){
x=x+0.5;
jg.drawLine(x-1,0-y[i-1]+baseline,x,0-y[i]+baseline);
if(x==1000) { break;}
}
jg.paint();
return;
}
8. Y array example values:
y=new Array(12,13,18,27,38,44,44,43,46,52,57,57,53,49,48,49,50,51,54,57,59,59,57,56,55,55,55,56,57,59,59,59,59,59,59,59,58,59,59,59,60,60
Note: For more details about Graphics drawing library , check the URL:
http://www.walterzorn.com/jsgraphics/jsgraphics_e.htm
You can find a working example at the URL:
http://osa-ora.awardspace.co.uk/
To draw ECG we need to identify few things 1st :
1.ECG baseline used.
2.Sampling rate : no of readings per seconds.
1. We will have 1 html div component to draw the ECG inside:
<div id="Canvas" style="background-image: url(ecg_back.png); position: relative; height: 250px; width: 1000px;"></div>
2. Import the graphics library: (in the header)
<script type="text/javascript" src="wz_jsgraphics.js"></script>
You can download this library from the URL:
https://code.google.com/p/eucaly61-java/downloads/detail?name=wz_jsgraphics.js&can=2&q=
3. Initialize the Java Script ECG variables: (in the header)
y=new Array(....,.....,.... ); //this contain the y values (readings) we will post the example values at the end of the article.
currentPart=0; //current page is 1st page in the ECG
baseline=201; //the is the ECG recording baseline
total=0; //total number of pages
temp=y.length; //calculate the total number of pages
while(temp>0){
temp=temp-2000; //as shown in the 1st image , we will draw 4 seconds in each page (each second represented by 500 sample =2000 total sample)
total++;
}
//initiliazie the graphics object to draw in our Div (i.e. Canvas)
jg = new jsGraphics("Canvas");
//set this true if we need to allow the user to print it, it will impact performance a little.
jg.setPrintable(true);
4. Draw the initial ECG page by calling draw() method on html body onload:
<body onload="draw();">
5. Draw function code:
function draw(){
jg.setColor("black");
jg.drawString("Lead II",40,5); //this should be adjusted according to the lead number
jg.drawString("HR 80 per min",40,25); //this should be adjusted according to HR value
jg.drawString("Page "+(currentPart+1)+"/"+total,40,220); //this is the current page number
jg.setColor("blue");
var x=0;
jg.drawLine(x,y[0]+baseline,x,y[0]+baseline);
jg.setColor("blue");
var x=0;
jg.drawLine(x,y[0]+baseline,x,y[0]+baseline);
for(i=1;i<y.length;i++){
x=x+0.5;
jg.drawLine(x-1,0-y[i-1]+baseline,x,0-y[i]+baseline);
if(x==1000) { break;} //break once reach to end of the div of 4 seconds.
}
jg.paint();
return;
}
6. Next and Previous page buttons:
<img src="prev.gif" onclick="drawPrev();"/>
<img src="next.gif" onclick="drawNext();"/>
7. drawPrev() and drawNext() functions:
function drawNext(){
if(currentPart+1<total){
currentPart++;
}else{
return;
}
jg.clear(); //clear all drawings
jg.paint();
start=currentPart*2000; //this is the total samples per page (4 seconds)
var x=0;
jg.setColor("black");
jg.drawString("Lead II",40,5);
jg.drawString("HR 80 per min",40,25);
jg.drawString("Page "+(currentPart+1)+"/"+total,40,220);
jg.setColor("blue");
jg.drawLine(x,y[start]+baseline,x,y[start]+baseline);
for(i=start;i<y.length;i++){
x=x+0.5;
jg.drawLine(x-1,0-y[i-1]+baseline,x,0-y[i]+baseline);
if(x==1000) { break;}
}
jg.paint();
return;
}
function drawPrev(){
if(currentPart>0){
currentPart--;
}else{
return;
}
jg.clear(); //to clear all drawings
jg.paint();
start=currentPart*2000;
var x=0;
jg.setColor("black");
jg.drawString("Lead II",40,5);
jg.drawString("HR 80 per min",40,25);
jg.drawString("Page "+(currentPart+1)+"/"+total,40,220);
jg.setColor("blue");
jg.drawLine(x,y[start]+baseline,x,y[start]+baseline);
for(i=start;i<y.length;i++){
x=x+0.5;
jg.drawLine(x-1,0-y[i-1]+baseline,x,0-y[i]+baseline);
if(x==1000) { break;}
}
jg.paint();
return;
}
8. Y array example values:
y=new Array(12,13,18,27,38,44,44,43,46,52,57,57,53,49,48,49,50,51,54,57,59,59,57,56,55,55,55,56,57,59,59,59,59,59,59,59,58,59,59,59,60,60
,61,61,61,61,61,61,61,61,62,63,63,63,63,63,64,65,66,66,65,65,65,65,65,66,66,66,66,66,66,66,67,69,70,71,71,70,69,69,68,69,70,71,72,73
,73,73,74,75,76,76,77,78,79,79,79,79,79,80,81,82,82,83,85,86,88,89,89,89,89,89,89,89,89,90,90,91,92,93,93,92,90,87,84,82,79,77,74
,72,70,69,67,67,66,66,65,63,62,61,60,59,58,57,56,56,56,56,56,56,56,55,55,56,56,56,56,56,56,57,57,57,56,56,56,56,55,55,55,55,56,56,55
,55,55,55,55,55,54,54,54,55,56,57,58,58,58,58,56,55,55,54,54,53,53,54,54,55,56,58,59,59,58,56,55,55,55,56,56,56,56,57,57,57,57,57,57
,57,57,57,57,57,57,57,58,58,58,58,58,58,58,57,57,58,59,60,59,58,58,57,57,57,57,58,58,58,58,59,60,61,61,61,62,62,61,61,60,61,61,62,63
,63,63,64,64,64,64,64,64,63,62,62,62,62,62,62,62,62,63,63,62,61,60,60,60,59,58,57,56,56,56,56,57,57,57,57,57,57,57,57,56,56,56,56,56
,57,57,57,57,56,56,56,56,56,57,57,58,57,57,56,56,55,54,52,49,47,45,44,45,48,52,58,66,75,86,99,111,121,127,129,126,119,108,94,79,66,57
,51,46,43,42,44,49,54,58,59,58,57,56,55,56,57,59,61,62,62,61,60,59,58,57,57,57,59,61,62,63,62,62,62,62,62,62,62,62,62,63,64,64,64,64,
64,64,65,65,66,67,68,69,69,68,67,66,66,66,67,67,67,67,68,69,71,73,74,74,73,71,70,69,70,70,71,70,70,70,71,72,74,75,76,76,76,77,77
,77,77,78,80,81,82,82,82,83,84,85,85,86,87,88,89,91,91,91,92,92,93,93,94,94,95,95,94,94,93,92,90,89,87,86,85,82,79,76,74,73,72,71,69
,67,65,64,64,63,63,62,62,62,60,59,58,57,57,57);Note: For more details about Graphics drawing library , check the URL:
http://www.walterzorn.com/jsgraphics/jsgraphics_e.htm
You can find a working example at the URL:
http://osa-ora.awardspace.co.uk/
