Wednesday, December 18, 2019

PCI DSS - Single Slide

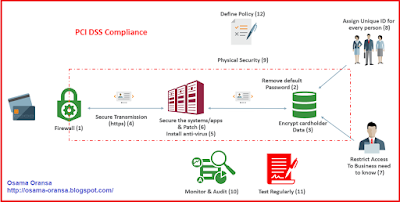

PCI Data Security Standard specifies twelve requirements for compliance, I created the following slide to summarize these requirements.




For more details:
https://www.pcisecuritystandards.org/document_library?category=pcidss&document=pci_dss

Monday, December 9, 2019

Twelve-Factors Application - Single Slide

I made this one slide to summarize all the twelve factor applications:



Review these factors from the site https://12factor.net/ and then memorize them using this single slide.

Wednesday, September 18, 2019

Use Google Authenticator for DFA

Double Factor Authentication (DFA) is one of the best methods to prevent brutal force attacks or password hijack, it allow the end user to have double factors to authenticate and login into any system i.e. password and OTP (One Time Password).

There are many ways to generate the one time password, the easiest is to send a random number to a pre-defined user mobile phone number so the user can use this random number to login into the system.
The random number here must be generated using a way that guarantee that no one can guess the number and able to by-pass such security way.

Another simple way is to use a known algorithm that generate a unique number based on some calculations and the user enter this number as OTP while login into the system, he can have a device that run this algorithm or as Google Authenticator a mobile app.

Google Authenticator is using a Time-based One-Time Password algorithm (TOTP) which is an extension of the HMAC-based One-time Password algorithm (HOTP) generating a one-time password by instead taking uniqueness from the current time.


In order to configure your web site to work with Google authenticator you need to modify your login screens and do some code that enable the DFA as following:

Enablement steps

1. Workflow Changes:

- User to go to profile management and request to enable double factor authentication (DFA) using OTP, 2 options can be implemented easily:
                          1. Google Authenticator
                          2. SMS
- SMS should be only enabled if we have SMS gateway configured in the system, so in this post we will discuss only Google Authenticator:

- User select one method, it route it to a new page which will contain:

[1] Links to Mobile Apps in Android & iOS, here is the links:
Google Authenticator App (Apple iOS)
Google Authenticator App (Google Android)



[2] QR code generated using either:
Google public service:  img src=URL
Java backend libraries which is the recommended way.


  •  The URL for google public service looks like: https://chart.googleapis.com/chart?chs=200x200&cht=qr&chl=200x200&chld=M|0&cht=qr&chl=otpauth://totp/osa@myCompany.com%3Fsecret%3DJBSWY3DPEHPK3PXP
  • Osama_oransa@myCompany.com=loginName@companyName.com for example
  • 3DJBSWY3DPEHPK3PXP=encoded secret code auto-generated to this user based on his profile e.g. name+timestamp or any random key
  • This URL will display an image that contains QR code or it can be generated by the Java backend.




[3] A statement displayed to the user: "Please scan this QR Code by Google Authenticator App"
[4] An Input field for OTP number
[5] A "Validate" button

Once the user scanner the QR code, the Google authenticator app will display OTP, the user will use it and click on validate button, if successfully matched with the value that we generate in the backend using the secret code, then DBA will be enabled for the user otherwise "OTP not matched" error will be displayed.

After 3 failed trials the user will be routed back to the profile management page with error message.
Once DFA is enabled the user profile page will now have disable DFA button instead of enable DFA (from security prospective, it is better to have this as re-configure DFA)

Note: For a better security some systems do not allow the user to disable the DFA once enabled.

2. Login Changes

- Once the user entered correct username and password a new page will be displayed
- The page will show a text field and validate button and request the user to enter the one time password.



- Once the user enter the value and click on validate button, the backend will calculate the existing value (based on the user secret code) and compare it to the user input.

- If successfully matched, the user will be directed to the home page otherwise he will be given 3 trials after that he will be logout and will be calculated as one invalid login trial.
-       Note: if the user exceed the max invalid login trials, the account should be locked.


3. Implementation Details

- DB Changes:

  • 2 additional DB fields in the user/profile table:
    • OTP_ENABLED (default No)
    • OTP_SECRET_CODE (encrypted, default null)

- User interface changes:

  • New pages as per the flow above in both DFA enablement and post successful login page.
  • Add button for Enablement of DFA in the profile management page in case the DFA is not enabled and a button for disablement of DFA in case the DFA is enabled.



4. Implementation Reference

All the logic will be in the Java backend, which will generate the secret code, the calculation, QR Code generation and validation as per the below reference in Java.
JavaScript library is listed here as it is the best reference to understand what is required for implementation.
- In JavaScript: can be tested easily in the browser with all code libraries:


- In Java:


- Reference for other languages:





Wednesday, April 3, 2019

Sensor-Ways Building Different IoT Devices

In this post we will build different variation of IoT devices that can work and communicate with the open source IoT backend application "Sensor-Ways".

The previous post summarize everything about building, compiling, configuring and monitoring the IoT device, so in this post we will focus on the hardware part and code.

All these devices can be either: Sensor-based only, Control-Only devices or Mixed Sensor and Control devices, so we will simplify all the devices to be sensor only and we will show an example of how to have a control device.

To connect a control device connect the relay the switch something on/off, you can connect up-to 2 relay modules as per the current design, but you can change it to accommodate more. Same for sensors, currently the supported is max 2 sensors connected, but this also can be change.
Therefore the following hardware components are for all devices and we will only list the required sensor beside each device:

Hardware Components:
- Arduino Wemos d1 or d1 mini or similar ESP8266 which contains the embedded WiFi chip.
- Buzzer (for local alarm)
- 5V Relay modules (1-2 optional in case we need to control other electric devices upon any action from the sensor reading or from the Sensor-Ways backend)
- Connection wires.
- Adapter 9V would be good to power the Wemos d1 board, optionally you can power it using USB connection or 9V Battery.

The following are optional connected components:
Connectivity:
1. Optional Buzzer (if local alarm is required): GND and D7
2. Optional Relay 1 (if control device is required): GND & D5
3. Optional Relay 2 (if a second control device is required): GND & D8 or D7

1) Safety Devices

These devices are mainly about home and workplace safety, for example you can monitor the temperature in different location so you can have early detection of fire and better quality of locating the exact fire location.
Same for gas leakage either for home or for industrial uses.

- Gas-Temperature Monitoring Device

We already discussed this device in the previous post in details:
https://osama-oransa.blogspot.com/2019/03/sensor-ways-open-source-iot-devices.html
Sensors:
1. MQ-2 or any to 5v, GND and A0
2. DHT sensor to 5v, GND and D6
Device Code:
You will need the 2 files in the same folder:

- Gas Monitoring Device

Sensor:
- Gas sensor like MQ-2 or any MQ sensor, Connected to 5v, GND and A0.
Device Code:
You will need the 2 files in the same folder:


- Temperature Monitoring Device

Sensor:
- DHT sensor to 5v, GND and D6
Device Code:
You will need the 2 files in the same folder:




2) Security Devices

These devices mostly fall into securing some locations such as restricted access doors, or home security.

- Door/Window Open Monitoring Device

This can monitor a window or a door to know if it is open or closed and send alert upon change of the status.
Sensor:
- Door magnetic sensor (see picture), Connected to 5v, and D6.
Device Code:
You will need the 2 files in the same folder:

- Laser Monitoring Device

To be posted soon.

- Drawer Control Device

To be posted soon.

- Camera Monitoring Device

To be posted soon.

- Motion Sensor Device

To be posted soon.

3) Environmental Devices

These devices is more about monitoring the environment and weather conditions, or reduce the consumption of water or energy.
The more you reduce the consumption of resources, the more efficient you help preserving the environment.

- Soil Moisture Device

By Monitoring the soil moisture degree, you can switch on/off water irrigation and reduce the water consumption according to the actual needs which can varies as per the weather conditions.
Sensor:
- Soil Moisture sensor (see picture), Connected to 5v, GND and A0.
Device Code:
You will need the 2 files in the same folder:




- Rain Monitoring Device

The use case to alert or automate something about rain starting, like retail shops that have some products outdoors or in the ports where products need to be covered in that situation.
Sensor:
- Rain drops sensor (see picture), Connected to 5v, GND and A0.
Device Code:
Same code like the Soil Moisture device but here we will care more about detecting any wet condition.


- Pollution Monitoring Device (Air Quality Sensor)

To be posted soon.

- Garbage/Trash Filling Monitoring Device

By Monitoring the trash filling level using ultrasonic sensor, we can detect if the trash need urgent emptying or not.
Sensor:
- Ultrasonic sensor (see picture), Connected to D6, D7, GND and V5
Device Code:
You will need the 2 files in the same folder:
IoTDevice-TrashSensorDeviceOTA.ino and IoTDevice-Common.ino

4) Control Devices

- One/Two Control Device

Sensor:
- No Sensors, Only connect 1 or 2 relay modules as: Relay 1: GND & D5, Optionally Relay 2: GND & D8 or D7
Device Code:
You will need the 2 files in the same folder:

5) Medical Devices

- Pulse & ECG Device

The idea behind this device is to capture either the ECG and send to the IoT backend or simply (more convenient) to detect heart rate, disconnected leads and flat rate, and set the alert to bradycardia or tachycardia or flat rate.
 Sensor:
- AD8232 heart monitoring connected to 3.3V, GND, A0, D6 and D7
Leads must be placed over the left arm, right arm and right leg to record the 3 lead electricity.
D6 & D7 detect disconnected leads if both are high (1)
A0 contains the signal/electricity recorded which you can either capture over time and send to the backend server or do some processing using a threshold detection for heart beats and send the heart rate to the backend server.
Device Code:
The code is simple as reading from A0 the electricity and either send a series of a specific duration e.g. 3 seconds or do some advanced analysis to detect HR and send only HR to the IoT backend.
Should be carefully used and never use such devices as a medical device as medical devices must be very reliable and a lot of efforts should be done for noise filtration as well.

6) Others Devices

The use case here is to detect morning and automate some work, or detect night to switch off something, etc.

- Light Sensor Device

To be posted soon.

- Parking Sensor Device

By Monitoring the parking slot using ultrasonic sensor, we can detect if the slot is empty or filled with something i.e. car.
Sensor:
- Ultrasonic sensor (see picture), Connected to D6, D7, GND and V5
Device Code:
You will need the 2 files in the same folder:
IoTDevice-ParkingSensorDeviceOTA.ino and IoTDevice-Common.ino


- Smart Phone as an IoT Device

To be posted soon.


To Build Any Other devices, You need to pick the device with the same run-time requirement, and just change the sensor and may be other connections and build it in no time!

Monday, March 18, 2019

Sensor-Ways Open Source IoT Devices

In this post we will introduce the IoT devices that can work and communicate smoothly with the open source IoT backend application "Sensor-Ways".
We will start with one useful device with both Gas and Temp monitoring capabilities.

Hardware Components:
- Arduino Wemos d1 or d1 mini or similar ESP8266 which contains the embedded WiFi chip.
- Gas sensor like MQ-2
- Temperature Sensor DHT11
- Buzzer (for local alarm)
- 5V Relay modules (1-2 optional in case we need to control other electric devices upon any action from the sensor reading or from the Sensor-Ways backend)
- Connection wires.
- Adapter 9V would be good to power the Wemos d1 board, optionally you can power it using USB connection or 9V Battery.



Connectivity:
1. MQ-2 or any to 5v, GND and A0
2. DHT sensor to 5v, GND and D6
3. Optional Buzzer: GND and D7
4. Optional Relay 1: GND & D5
5. Optional Relay 2: GND & D8 or D7


Device Code:
You will need the 2 files in the same folder:


Code Compile & Upload:
Using Arduino IDE compile the code and ensure everything is working fine. Then upload the code to a connected board using USB.
Note: You may need to install some of the libraries as needed in the import section in the code.

Device Configurations:
The default code is configured to connect 2 sensors; Gas & Temp and no relay modules are connected, you can change this easily by the 2 variables:
//Connected Sensors Count
int connectedSensors = 2;
//Connected Relay Modules Count
int connectedDevices = 0;

You can also update the other settings like WiFI SSID, password, Sensor-Ways backend deployment IP/URL and Port and Device Id & Password.
Note: In the previous post we have deployed our Sensor-Ways application, so you can easily get the IP address and HTTP/HTTPS port.
Also we have demonstrated the steps required to register a new IoT device where we get at the end device Id and device password, all you need to do is to follow these steps again in the backend IoT Sensor-Ways server:
  1. Create a new Device Model with the same exact features supported in our IoT device (Gas and Temperature Sensors without any control device attached).
  2. Add new unique bar code attached/mapped to this device model (once for each IoT device)
  3. Go to Manage Devices and Add new device using this bar code (it will auto detect the associated device model)
  4. Once the device is registered, you will need to use the device id and password to update your IoT device to connect to the system
Here is sample of defining Gas-Temp device model:


- The other option to configure the device during runtime by deploying the code to the IoT device and it will allow you at 1st time to configure the required values at the 1st run; device Id, password, WIFI SSID and WIFI password.
As simple as: Open the serial monitor in the Arduino IDE, send commands like: id=value, pass=value, wifi=vale, password=value, then send restart=true (1st time you will need to do a manual restart for the device after the code uploaded otherwise you will get an error)
You can write help=true to show all the possible commands.

This serial connection is very useful when you ship your IoT devices to the customers with pre-configuration to your IoT server, all you need during installation is to connect the device and configure the required customer variables such as device and WiFi identifiers.

Note: For production you will need to switch the debug messages by commenting one line in the variables section that define the debug:
#define DEBUG
To looks like:
//define DEBUG

Monitoring The Device & Device Management:
Now if we go to Sensor-Ways backend application and open Manage Devices we can see the device status and last message received from the device and last ping (last seen).


If we click on that device we can see more information in the device details page and we can also send some commands or do some sort of device management.



When you have enough messages, the graph icon will appear where you can see the pattern in your device messages.

You may try to send some commands such as request new update message from the device or restart the device, you can also edit the thresholds for alert for different sensor (per device).
You will get notifications upon any alert (values that violate the thresholds) also when the device in online or offline or sending error data, etc.. you can control all these messages from the preferences:



The platform has a lot of other features like defining workflow based on the sensor input values, or schedulers,  also building dashboards, simulators, etc.. you may need to spend reasonable time to fully understand the different features.

In subsequent posts, we will demonstrate many other IoT devices that enrich our IoT platform capabilities.


Saturday, March 9, 2019

Sensor-Ways Open Source IoT Platform

Sensor-Ways is my new open source project, created to provide end-to-end IoT capabilities and enable you to create different IoT applications.

This is an example of the devices list page.


In this post we will list the different capabilities in this platform which uses MySQL DB and Glassfish server for the runtime environment, all open source based technologies.
The platform aim to use Arduino-based chips which can be customized as per our application needs, so the whole system enables the customization and upgrade ability of both hardware and software components of the IoT device.

List of features:

- Multi-tenant platform allow you to manage different and separate accounts/customers.
- Account/User Management including activating/deactivating users, assign either read-only/read-write to different users.
- Ability to define Device Models with different sensors and control units.
- Ability to define bar codes for each device model to enable the on-boarding of end-user devices.
- Ability to manage IoT Devices statuses, send command, request messages, etc..


- Complete Device Management capabilities including: Control IoT Devices, Send/Recieve messages/commands, and enabled OTA firmware upgrade.
- Define thresholds for alerts per each IoT device.
- Define smart rules to be executed locally inside the device based on the sensors' readings.
- Built-in notification alerts


- Using gmail for sending email notifications
- Build workflows across different devices.
- Build schedulers to execute actions on different devices.
- Build device groups as a virtual grouping to control devices as one unit.
- Build customized dashboard for each user with nice and simple graphs.


- Assign a notification user per each device which gives high flexibility.
- Build different simulations to simulate the IoT devices to build the IoT applications.
- Upload new firmware for any model and define the required actions upon this new firmware upload.
- Build customized reports as per needed.
- Navigate and filter different audit records.
- Full control over system jobs and their configurations e.g. offline detection of devices, purge old records, scheduler execution, etc.
- Support different languages for the GUI and Notification templates.
Communication Protocol
The protocol is documented in the application, in protocol.jsp page where you can clearly understand the different parameters, header values and responses.
4 Main message types: login, update message, ping message and update firmware message.

Project Repository

The project is hosted in GitHub public repository:
https://github.com/osa-ora/sensor-ways

Installation Guide: Development Environment

- The following steps for development environment setup, as this project is Java based project, and it is built using NetBeans 8.2 IDE.

1- Install MySql DB 5.7 (if later version, you will need to review connection string, driver and fix it for proper DB connectivity)
2- Create the required schema "iot" for the application and grant the application user access to the database "iot_user"
  •       Create "iot_user"
  •       Create iot schema and run the schema creation script file "schema_tables.sql"
  •       Populate the iot schema for LOV data by running the script file "lov_data.sql"
  •       Grant the user "iot_user" full privileges to the iot schema
3- Create default objects so the application can run including: tenant_settings, users and system_config tables.
Here is the sample entries for these tables:

INSERT INTO `tenant_settings` VALUES (1,100,'Development Space', 1,150,15,20,'Africa/Cairo',0,'2019-01-31 16:21:06',5,20,1,0,0,0,0,5,0,0,0,'YOUR_EMAIL',15,1,1)

//Replace the email with your email.

INSERT INTO `users` VALUES (1,'Osama Oransa', '$31$16$nnmJyLDHWYGSGUF7gyrBjc2aw4JzkoB-PL5QCn_nKtA' ,'YOUR_EMAIL',100,1,0,'2019-02-03 11:40:26',1,'2018-06-01 18:07:43','2018-11-21 20:03:39' ,1,null,1,1,1,1,1,1,1,2,'0:0:0:0:0:0:0:1')

//Replace "Osama Oransa" and email with your data, email should match the email that you used in the tenant setting.

The default password is 123, no need to change it, because you can change it once the GUI is ready.

INSERT INTO `system_config` VALUES (1,'1.0','1.0',1,'smtp.gmail.com','587',1,'GMAIL_EMAIL','GMAIL_PASSWORD',2,'2018-11-10 15:47:46','1.0','SERVER_IP',SERVER_HTTPS,SERVER_HTTP,'Africa/Cairo');

//These settings is mainly for sending emails and for server information, you need to populate them all or disable the email sending.
//Server information could be using the local or public IP Address of the target server of this deployment, this is very critical information for OTA device firmware upgrade.
NOTE: Gmail account for sending emails must be security enabled to allow external applications to send emails.

4- Import the project/open it using NetBeans IDE8.x or later.
5- Change the Glassfish resource file "glassfish-resources.xml" to point to the correct MySql DB and to use the proper "iot_user" credentials.
6- Build & Deploy the application
7- Login using your email, password=123 and development-identity=100


8- Once logged-in change your password, and start to use the system.

Installation Guide: Production Environment

- Ensure DB setup is correct and in place.
- You need to export the WAR file and deploy it from the Glassfish Admin GUI.



Steps To Add an IoT Device:

From the Server side we need to do the following steps:

  1. Create a new Device Model with the same exact features supported in your IoT device (once per device model).
  2. Add new unique bar code for this device model (once for each IoT device)
  3. Go to Manage Devices and Add new device using this bar code (it will auto detect the associated device model)
  4. Once the device is registered, you will need to use the device id and password to update your IoT device to connect to the system.


We will see how to use the device id and password plus other important attributes in the next post where we will discuss the Arduino-based IoT Device Setup.

Features still in development:

The following areas are still in development:
- Add support to MQTT/JMS and other required protocol (Add different end points for each protocol)
- Expose REST APIs for all operation (for management + mobile clients)
- Build Mobile Clients that consumes the REST APIs
- Add push notification as one of the notification channels
- Add batch processing to some modules such as device registration.
- Implement IoT device change password from the server
- Add GUI language switch e.g. Arabic/English
- Build some default applications
- Enhance or build a new GUI
- Improve dashboard and graph features by using ready open source modules.
- Add better reporting capabilities.
- Add billing reporting capabilities (to produce consumption reports)
- Add some validation in the front-end, and backend.
- Fix the workflows in the level of device group
